Create Application

In KubeRocketCI, all software components, such as applications, libraries, Terraform infrastructures, and automated tests, are referred to as codebases. KubeRocketCI provides flexible methods for scaffolding these components.

This guide will walk you through the process of creating a Go application using the Gin framework. The Marketplace will be used to streamline the application creation process.

Application Onboarding

To create the first application, complete the instructions below:

1. In the KubeRocketCI, navigate to Projects.

2. In the top right corner of the screen, click + Create project.

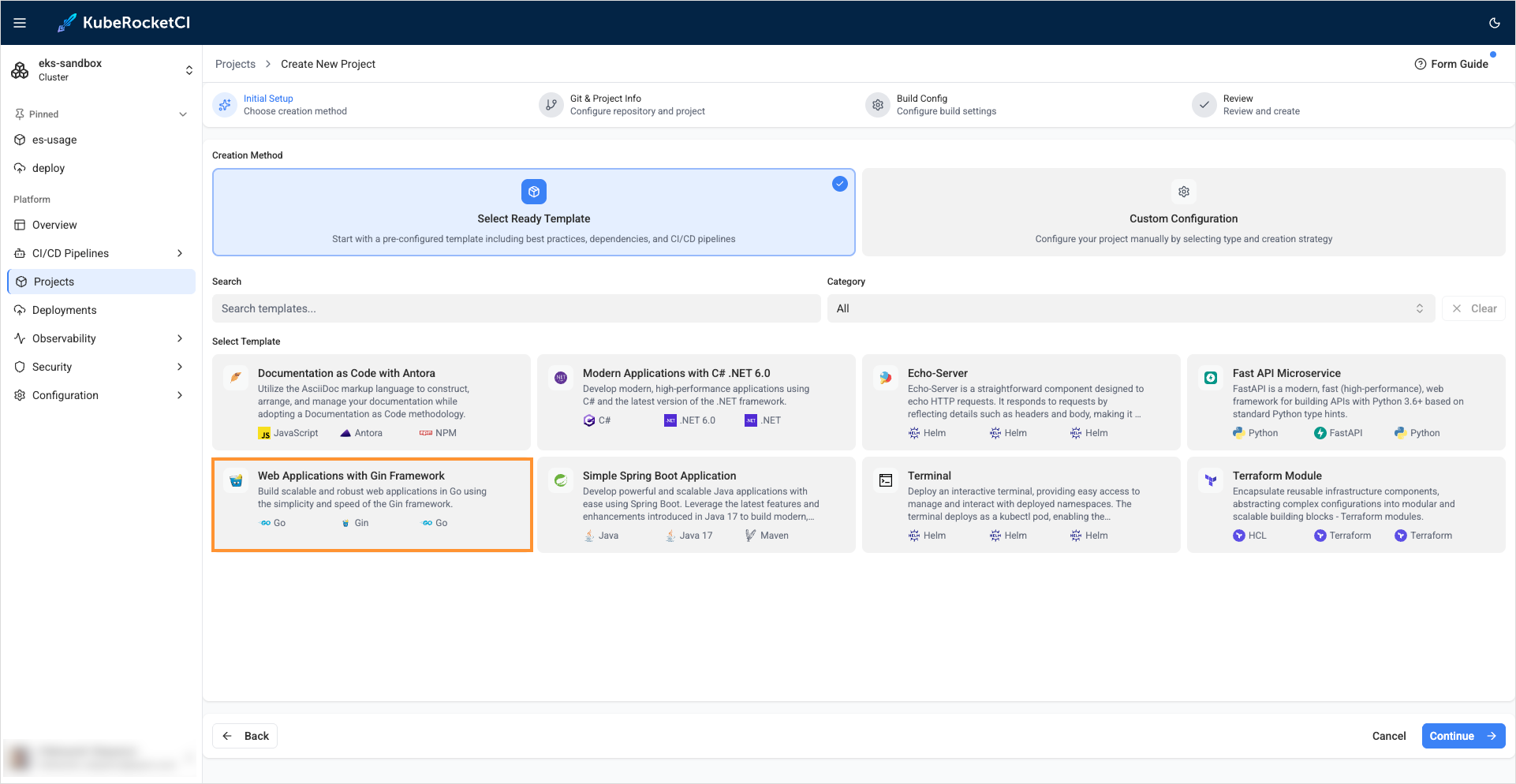

3. In the Select Ready Template section, select Web Applications with Gin Framework and click Continue ->:



4. In the Git and Project info stage, define the following values and click Continue:

   • Git server: github
   • Owner: <github_account_name>
   • Repository name: my-go-gin-app
   • Default branch: main
   • Project name: my-go-gin-app
   • Description: My first application
   • Private: disabled

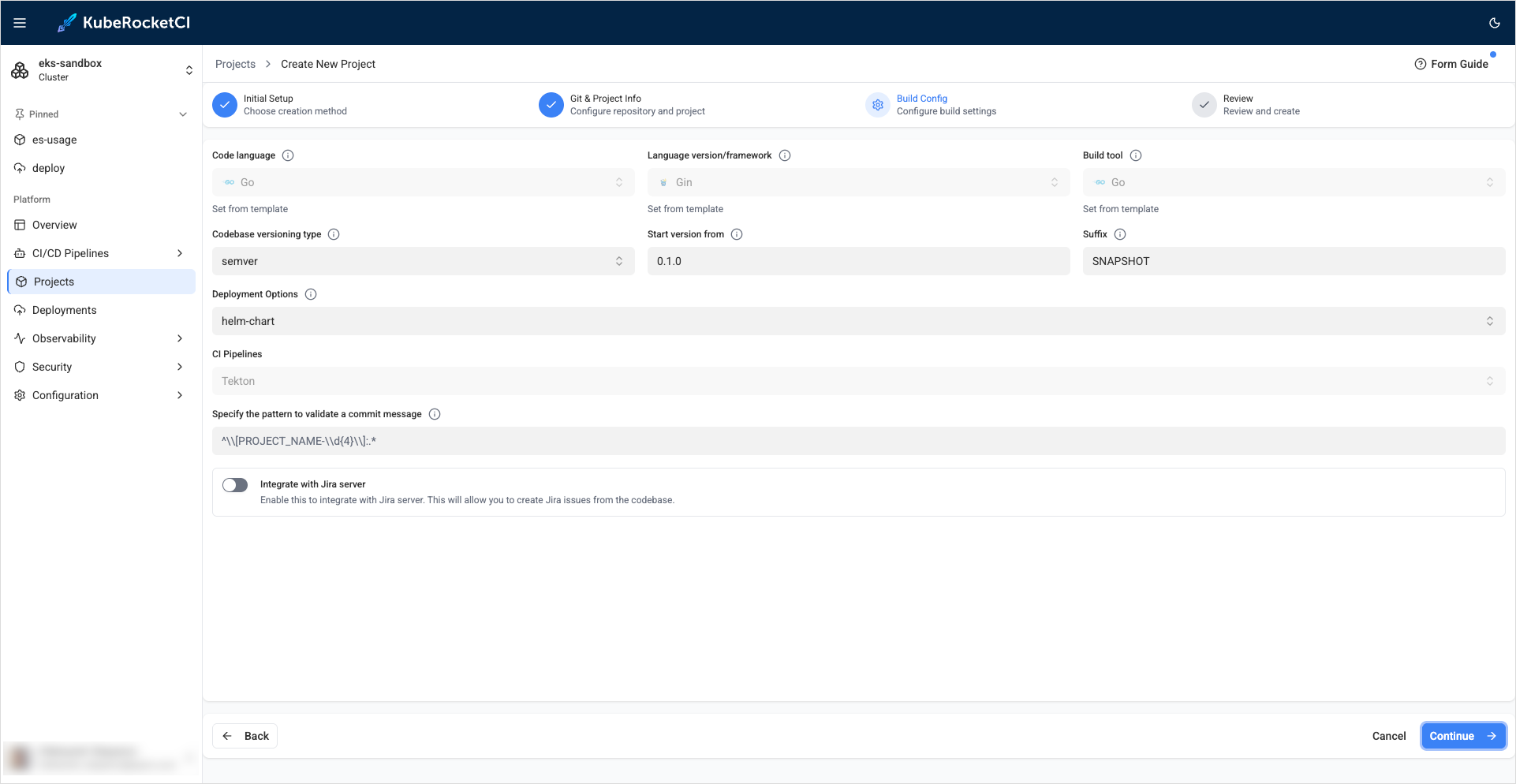

5. In the Build Config stage, define the following values and click Continue:

   • Codebase versioning type: semver
   • Start version from: 0.1.0
   • Suffix: SNAPSHOT

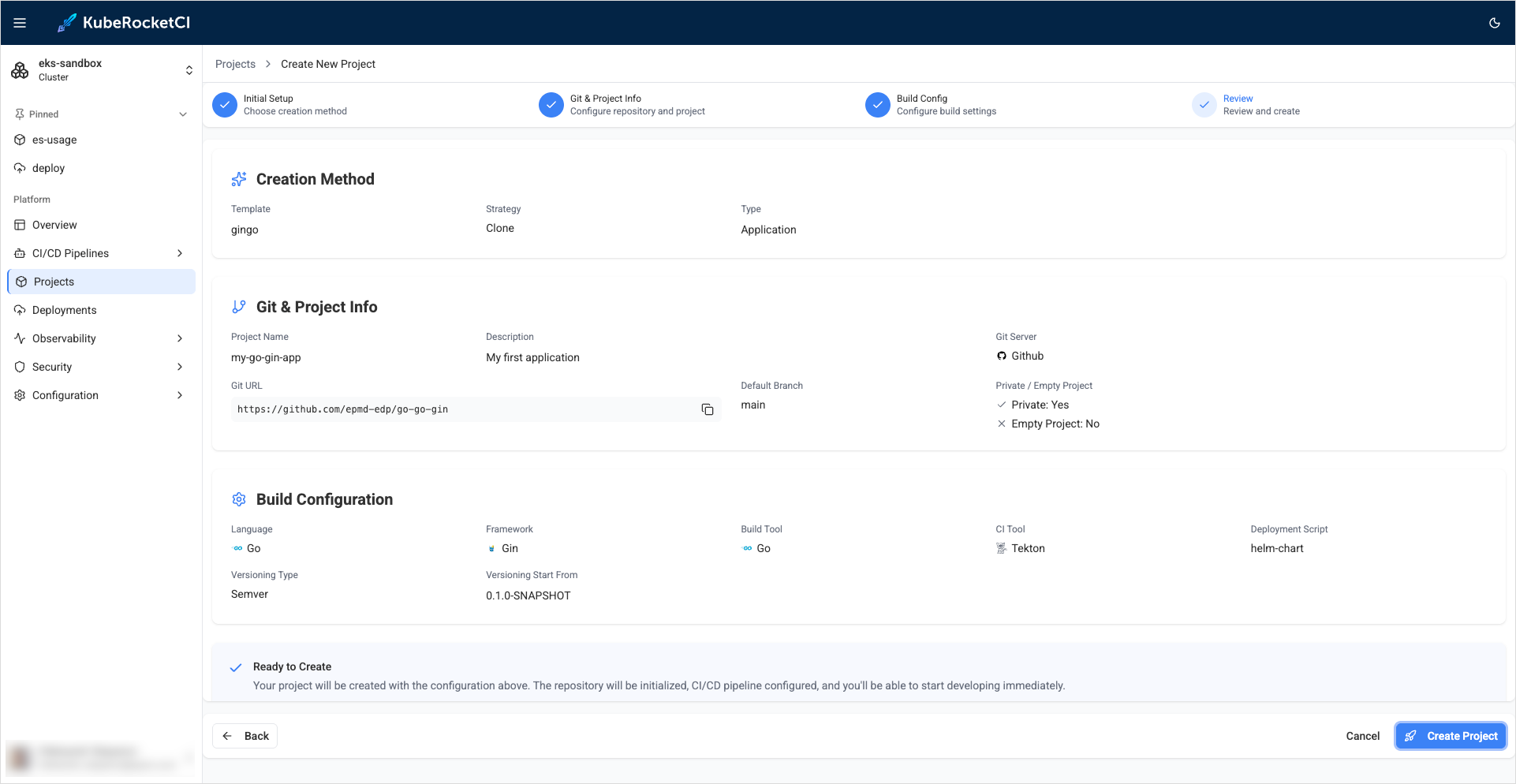

6. In the Review stage, verify the configuration and click Create Project:

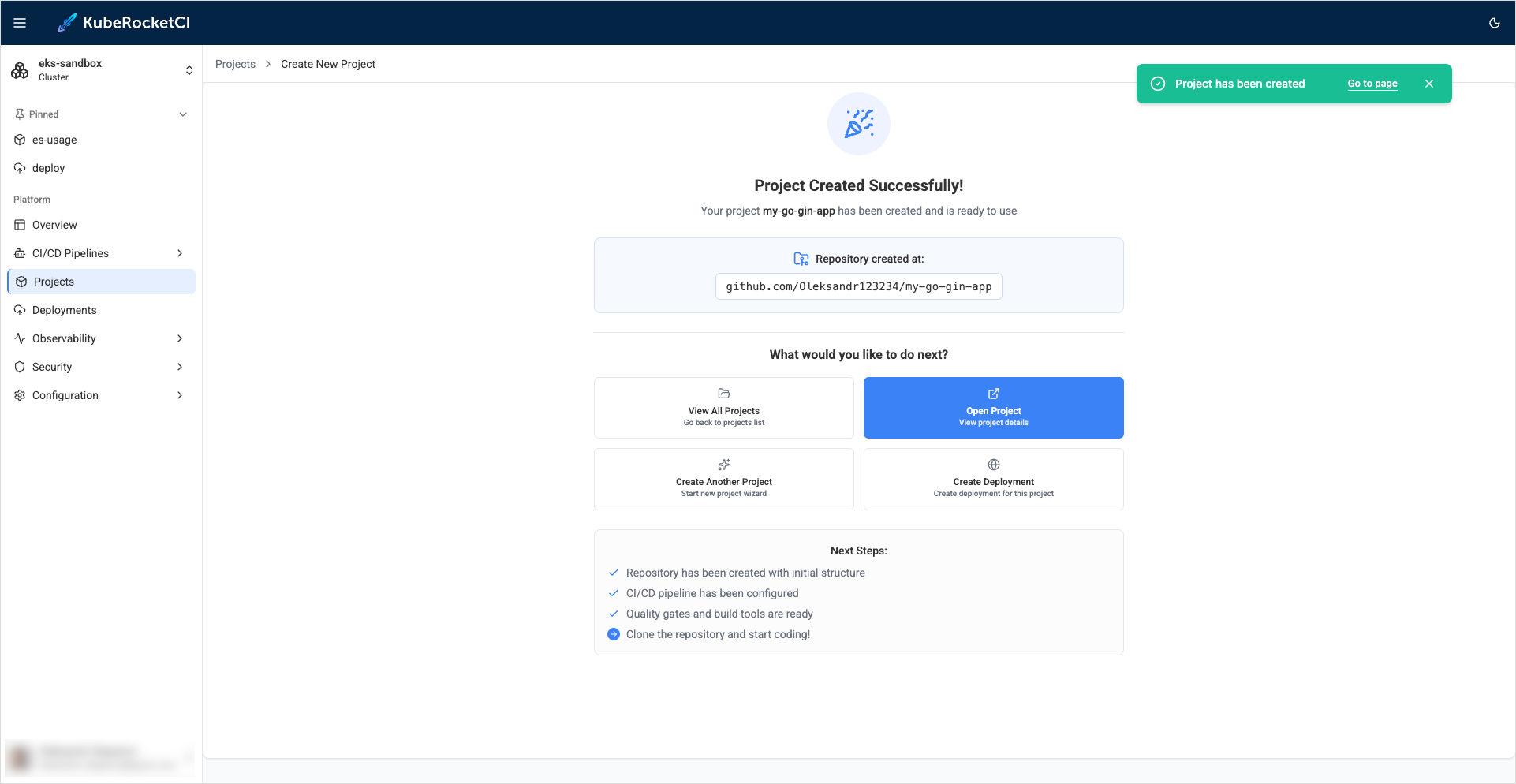

7. As soon as the codebase is created, navigate to it via the notification at the bottom left corner or click the Components section:



Build Application

Having created the Go application, proceed to build it by performing the following actions:

1. Open SonarCloud page.

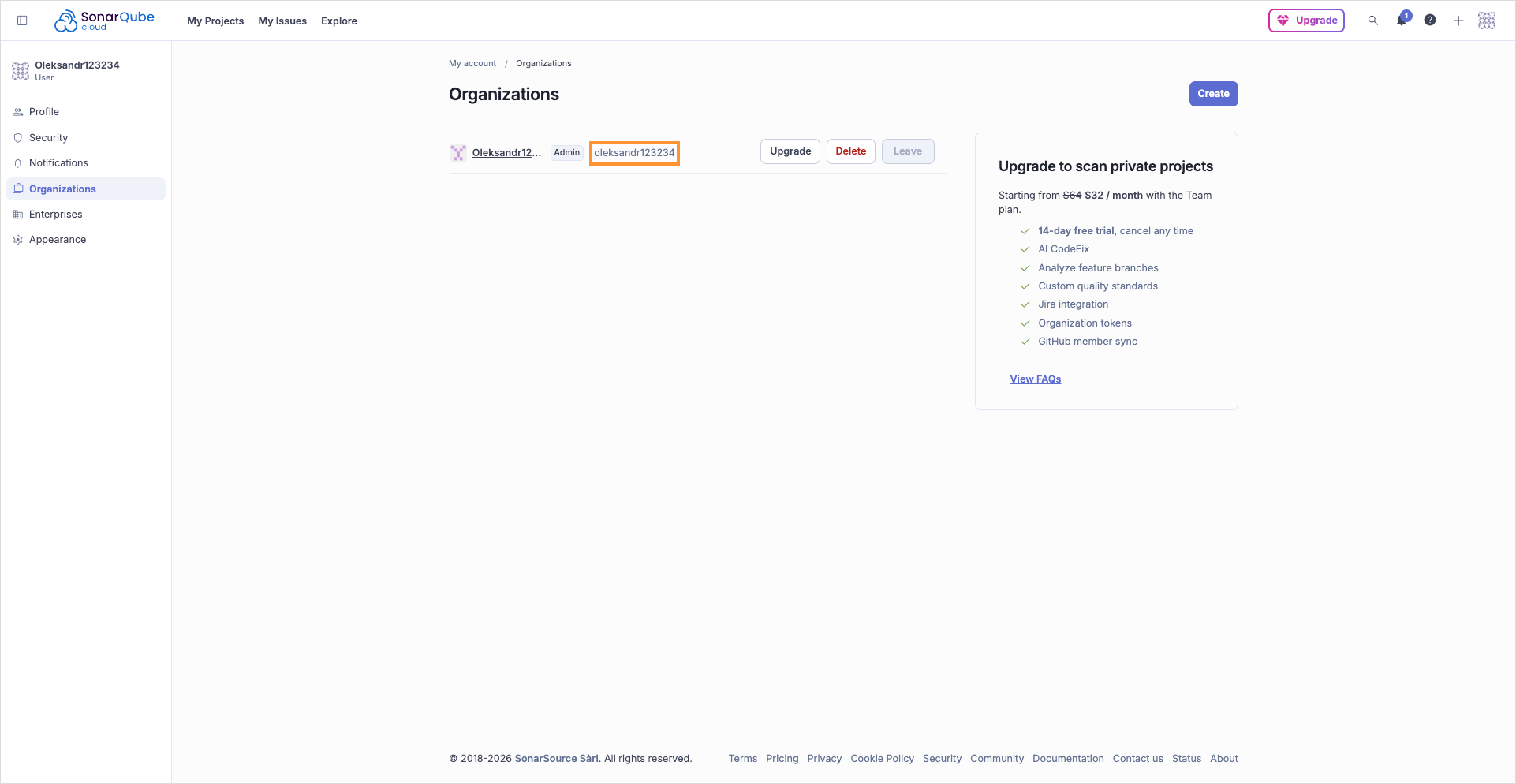

2. On the account settings, copy your SonarCloud organization key (lowercase identifier used in API and properties):

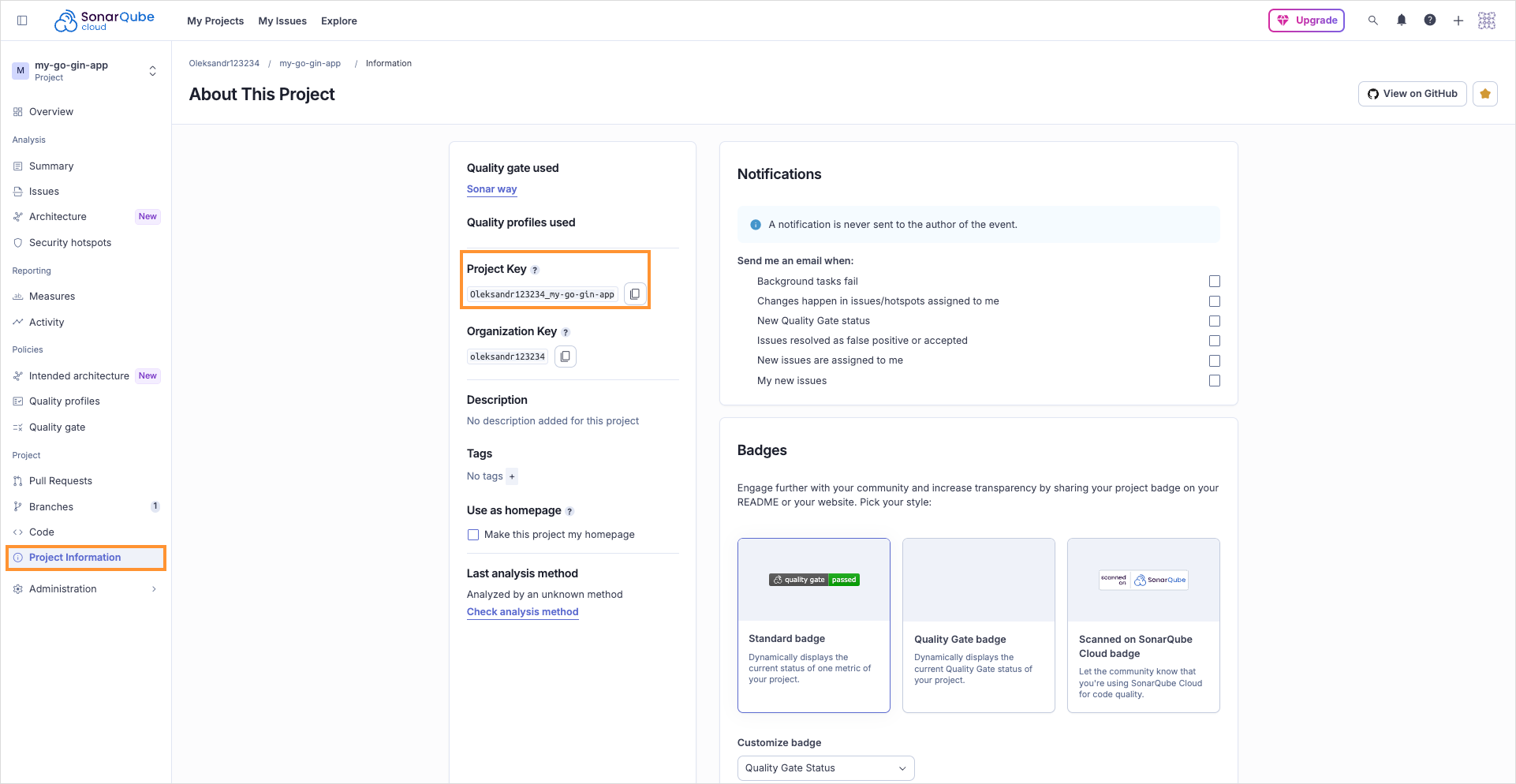

3. In SonarCloud, open the project and go to Project Information. Copy the Project key exactly as shown (spelling and casing matter). For projects created from GitHub, it is often <organization-name>_<codebase-name> (for this guide the codebase name is my-go-gin-app):

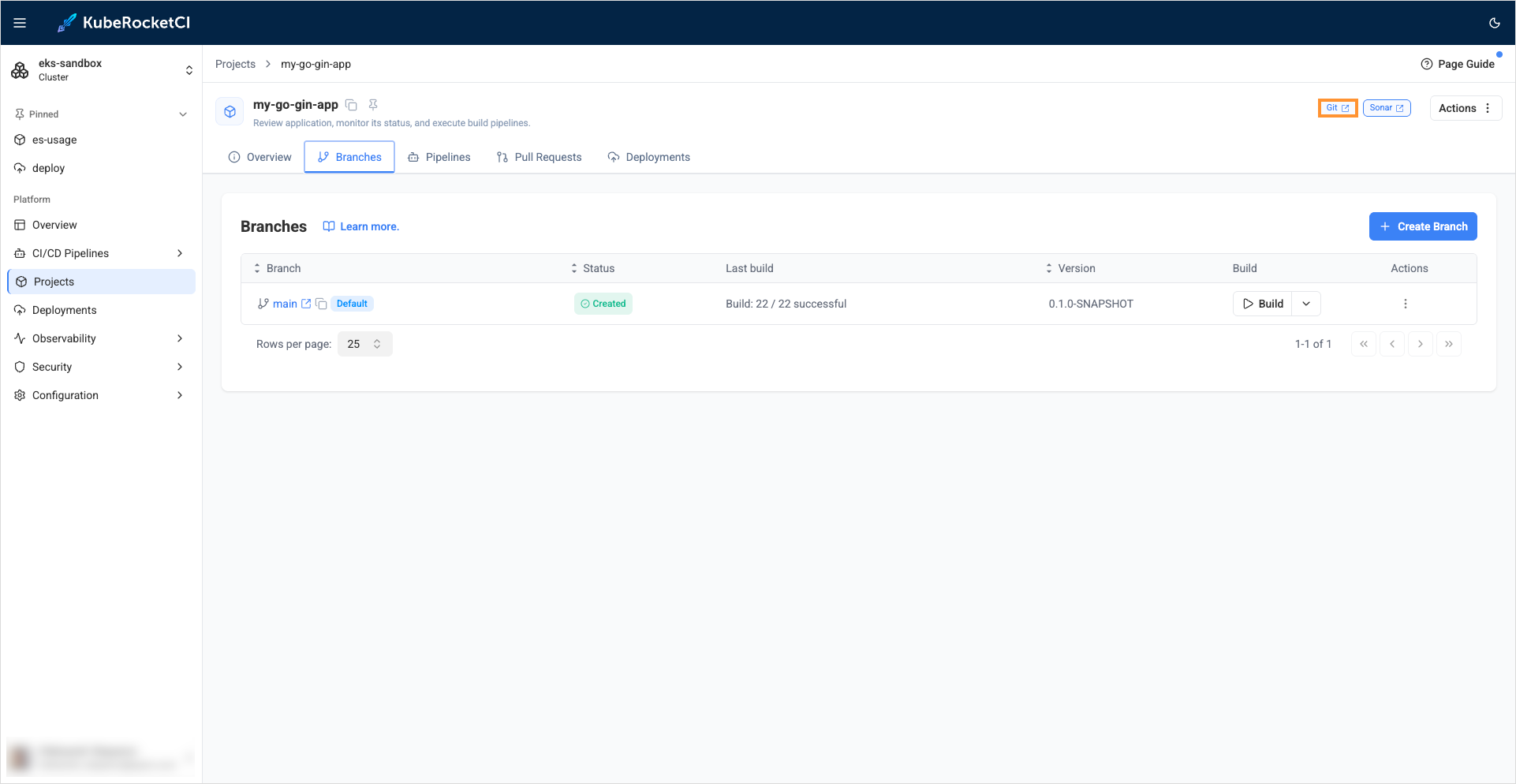

4. In the component details page, expand the application and click the GIT button:

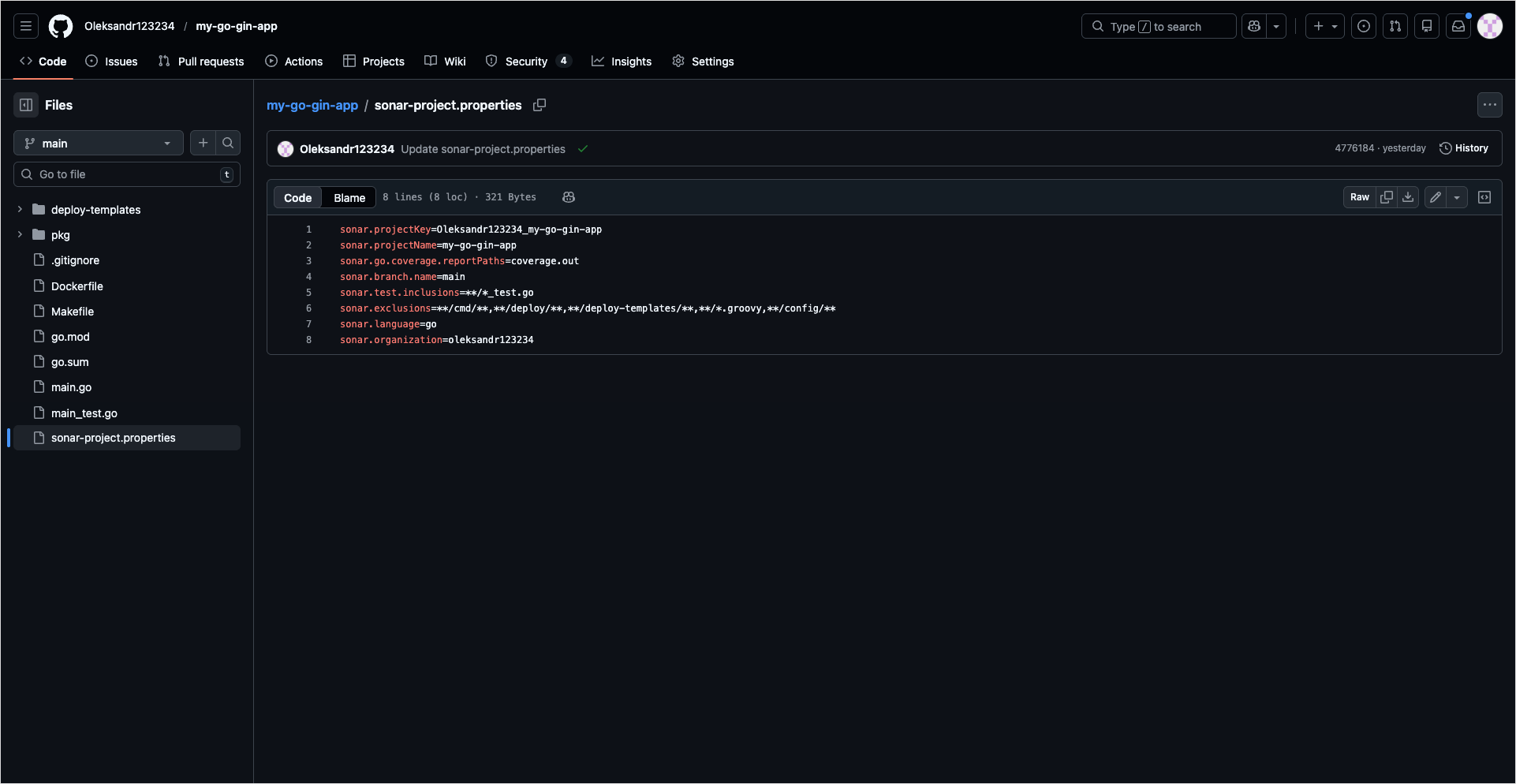

5. In the repository on the main branch, edit sonar-project.properties. Set sonar.projectKey to the Project key from the previous step, sonar.organization to your organization key, and keep the rest aligned with the codebase name my-go-gin-app:

   sonar.projectKey=<organization-name>_my-go-gin-app
   sonar.projectName=my-go-gin-app
   sonar.go.coverage.reportPaths=coverage.out
   sonar.branch.name=main
   sonar.test.inclusions=**/*_test.go
   sonar.exclusions=**/cmd/**,**/deploy/**,**/deploy-templates/**,**/*.groovy,**/config/**
   sonar.language=go
   sonar.organization=<organization-key>



   note

   Replace <organization-key> with your real organization key from SonarCloud. If SonarCloud shows a Project key that does not follow <organization-key>_my-go-gin-app, use the value from Project Information verbatim for sonar.projectKey.

6. Commit and push the sonar-project.properties changes to the main branch.

7. Align the Tekton Pipeline with SonarCloud.

   The sonarqube-general Task overwrites sonar.projectKey from the pipeline parameter SONAR_PROJECT_KEY. The build pipeline often sets SONAR_PROJECT_KEY to $(params.CODEBASE_NAME) only (for example my-go-gin-app). That value must match the Project key from SonarCloud Project Information (often <organization-key>_my-go-gin-app).

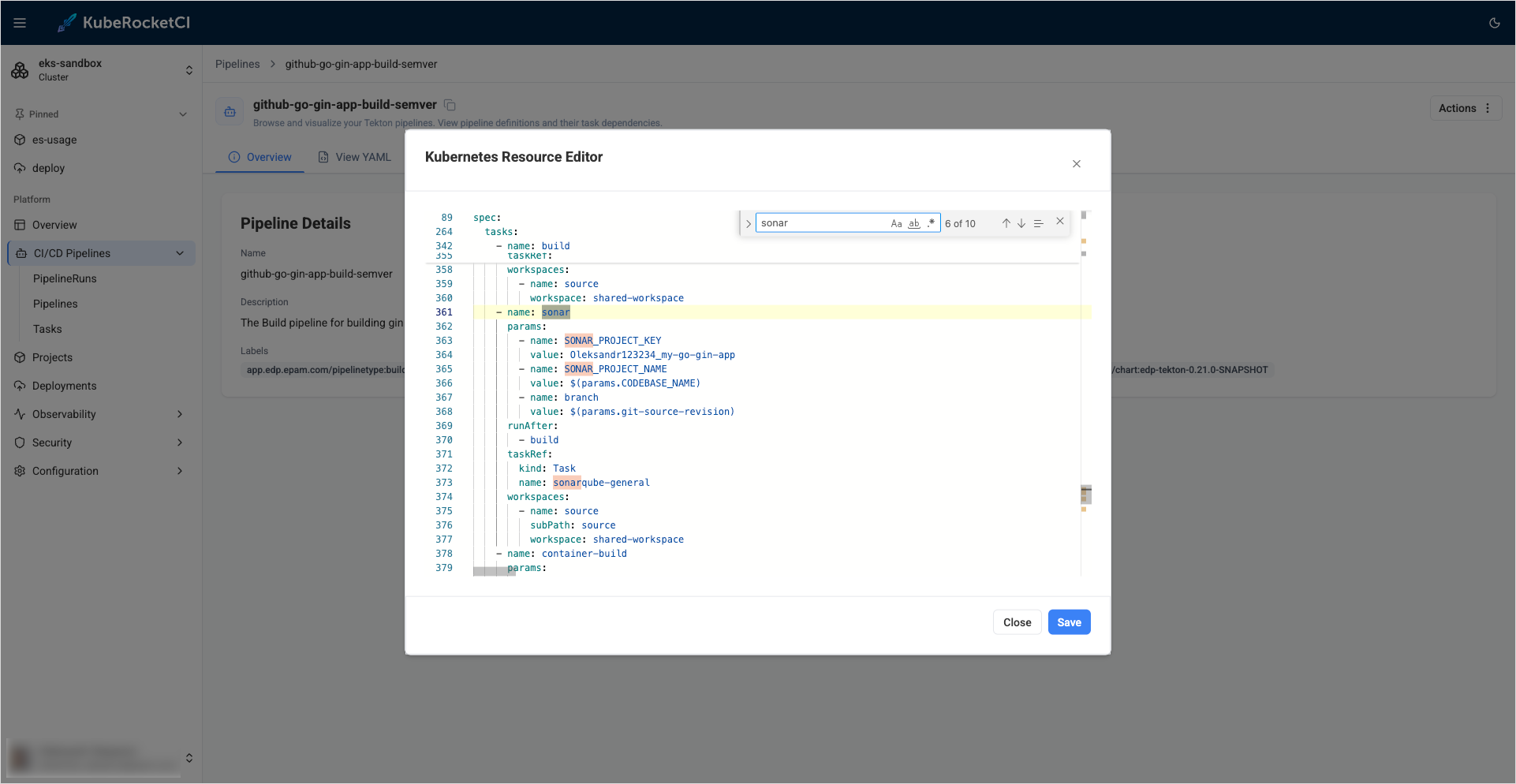

   Navigate to KubeRocketCI portal -> CI/CD Pipelines -> Pipelines. Search the github-go-gin-app-build-semver Pipeline and click on its name. In the top-right corner of the screen, click Actions -> Edit. Find the task named sonar and set its parameters as follows.

   Replace the sonar task parameter block (or the equivalent fragment) with:

   - name: sonar
     params:
       - name: SONAR_PROJECT_KEY
         value: "<organization-name>_my-go-gin-app"
       - name: SONAR_PROJECT_NAME
         value: $(params.CODEBASE_NAME)
       - name: branch
         value: $(params.git-source-revision)
     runAfter:
       - build
     taskRef:
       kind: Task
       name: sonarqube-general
     workspaces:
       - name: source
         subPath: source
         workspace: shared-workspace

   Replace "<organization-name>_my-go-gin-app" with the exact Project key from SonarCloud (quotes keep YAML valid if the key contains characters such as _):



   note

   If this Pipeline is managed by Helm or Argo CD, apply the same change in the GitOps manifest or chart values so the cluster object is not reverted on sync.

   note

   If you use a self-hosted SonarQube instance instead of SonarCloud, follow SonarQube integration; project key rules may differ.

8. Update the sonarqube-general Task so the SonarCloud availability check does not treat HTTP 307 (redirect on the site root) as failure.

   1. Navigate to KubeRocketCI portal -> CI/CD Pipelines -> Tasks.
   2. Search the sonarqube-general Task and click on its name.
   3. In the top-right corner of the screen, click Actions -> Edit.

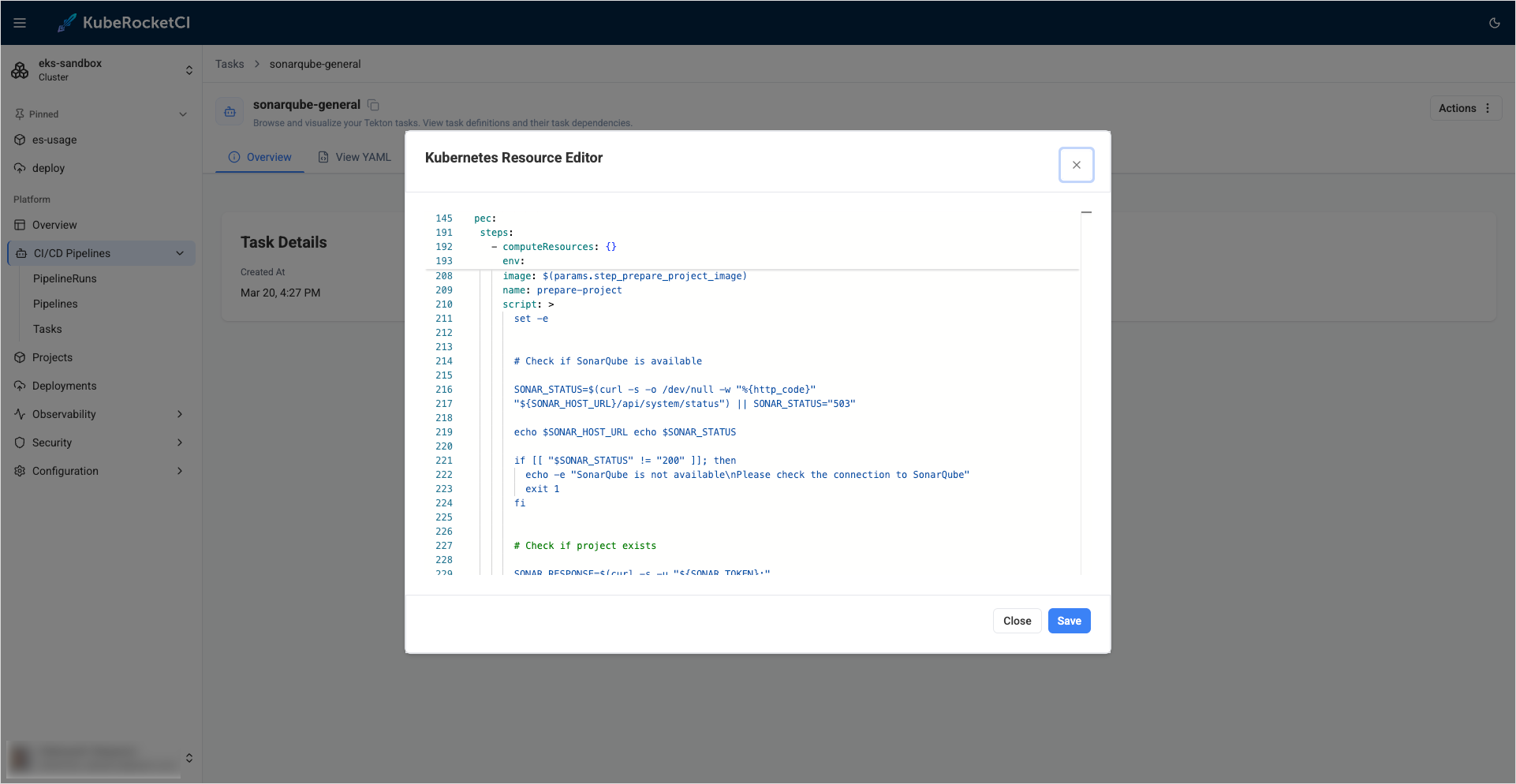

   4. In the Tekton Task named sonarqube-general, open the step prepare-project.
   5. Find the check that requests ${SONAR_HOST_URL} with curl and replace the availability logic with a GET to /api/system/status, for example:

   SONAR_STATUS=$(curl -s -o /dev/null -w "%{http_code}" "${SONAR_HOST_URL}/api/system/status") || SONAR_STATUS="503"

   if [[ "$SONAR_STATUS" != "200" ]]; then
     echo -e "SonarQube is not available\nPlease check the connection to SonarQube"
     exit 1
   fi

   Remove or do not use a bare HEAD/GET against ${SONAR_HOST_URL} alone without following redirects, as SonarCloud can respond with 307 and the step would exit incorrectly.



   note

   Cluster administrators usually patch this Task once per environment. If your platform already ships the /api/system/status check, you can skip this step.

9. Ensure Automatic Analysis is disabled for this project in SonarCloud when using CI scans (see Integrate SonarQube).

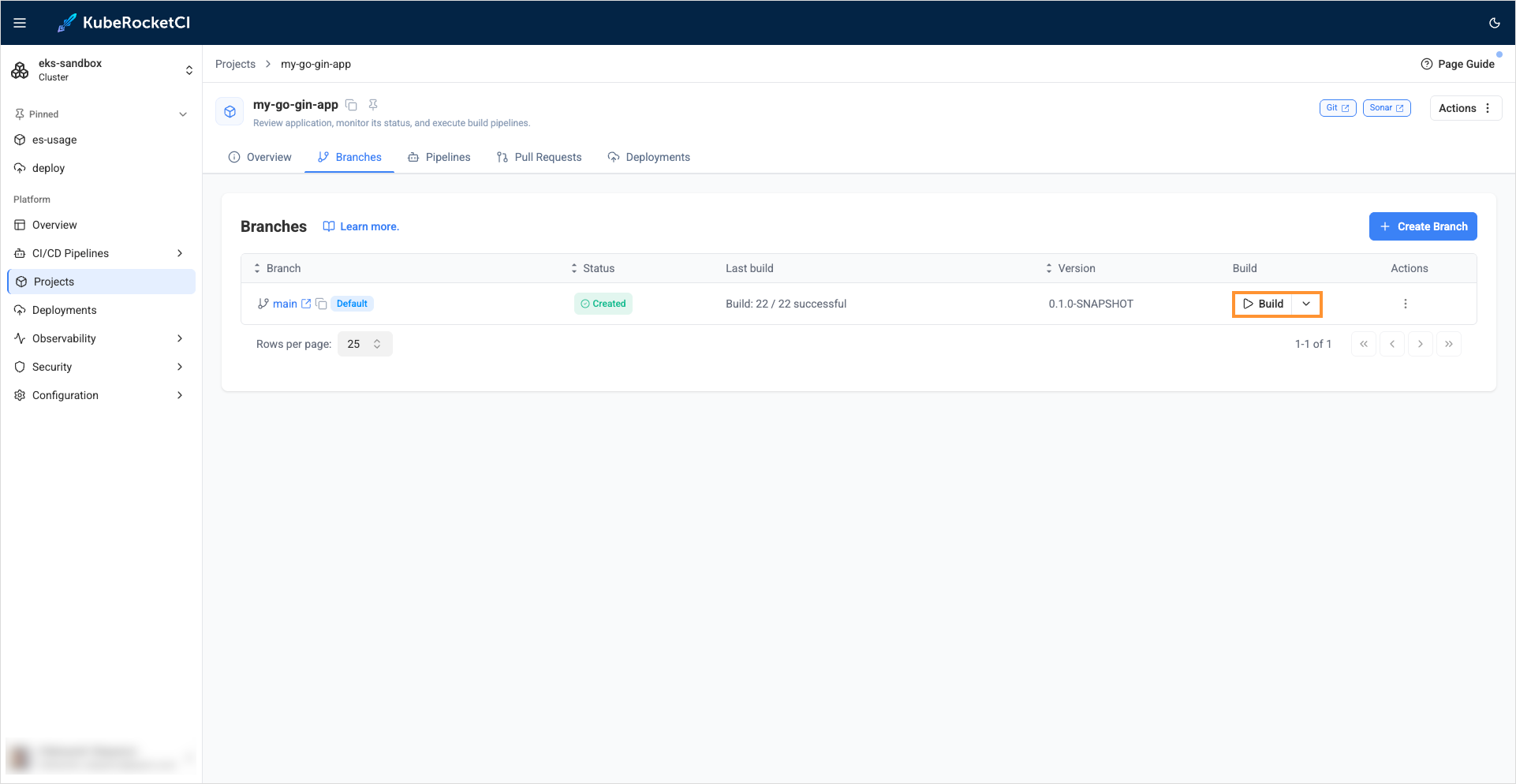

10. In the Project details page, click Build:

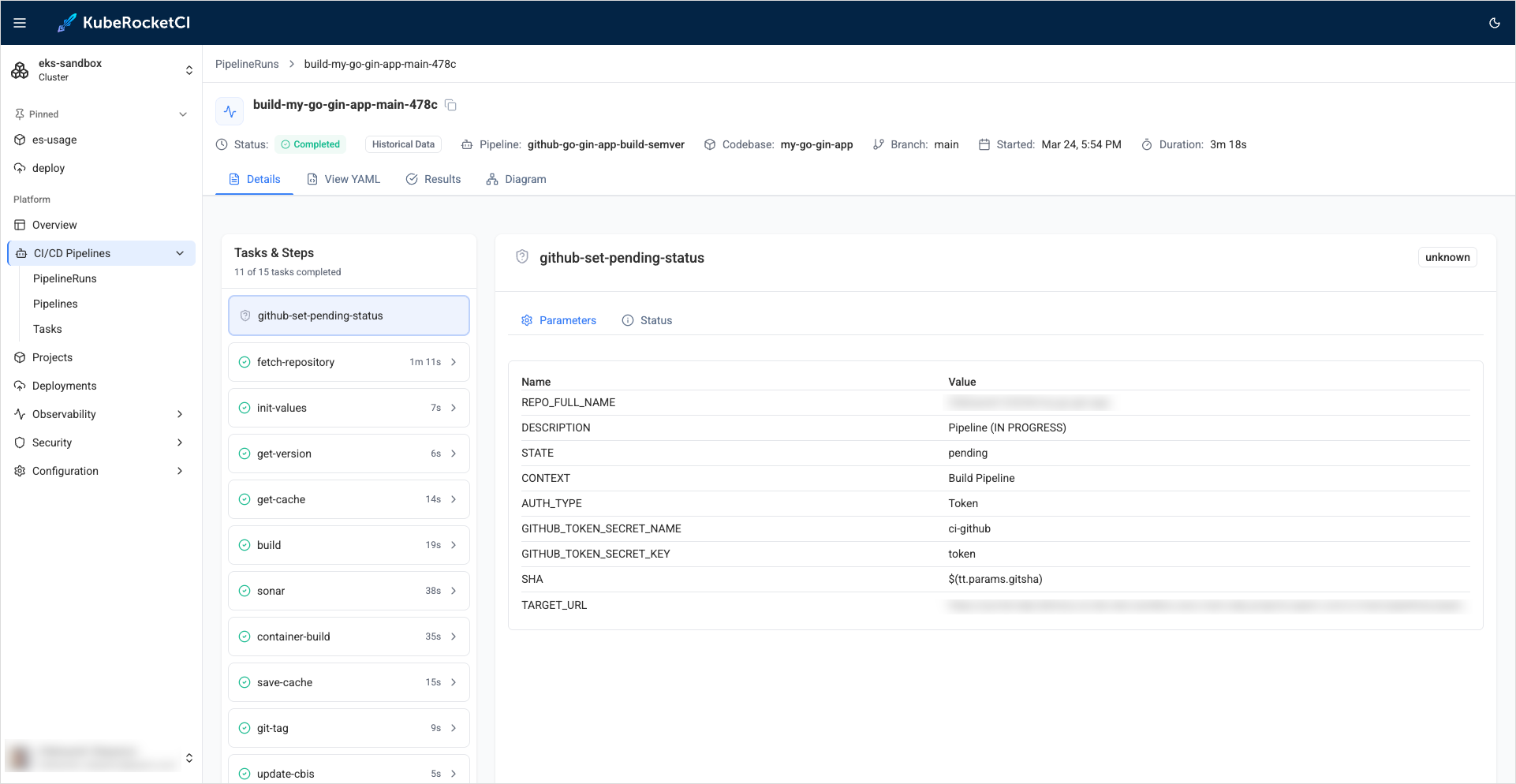

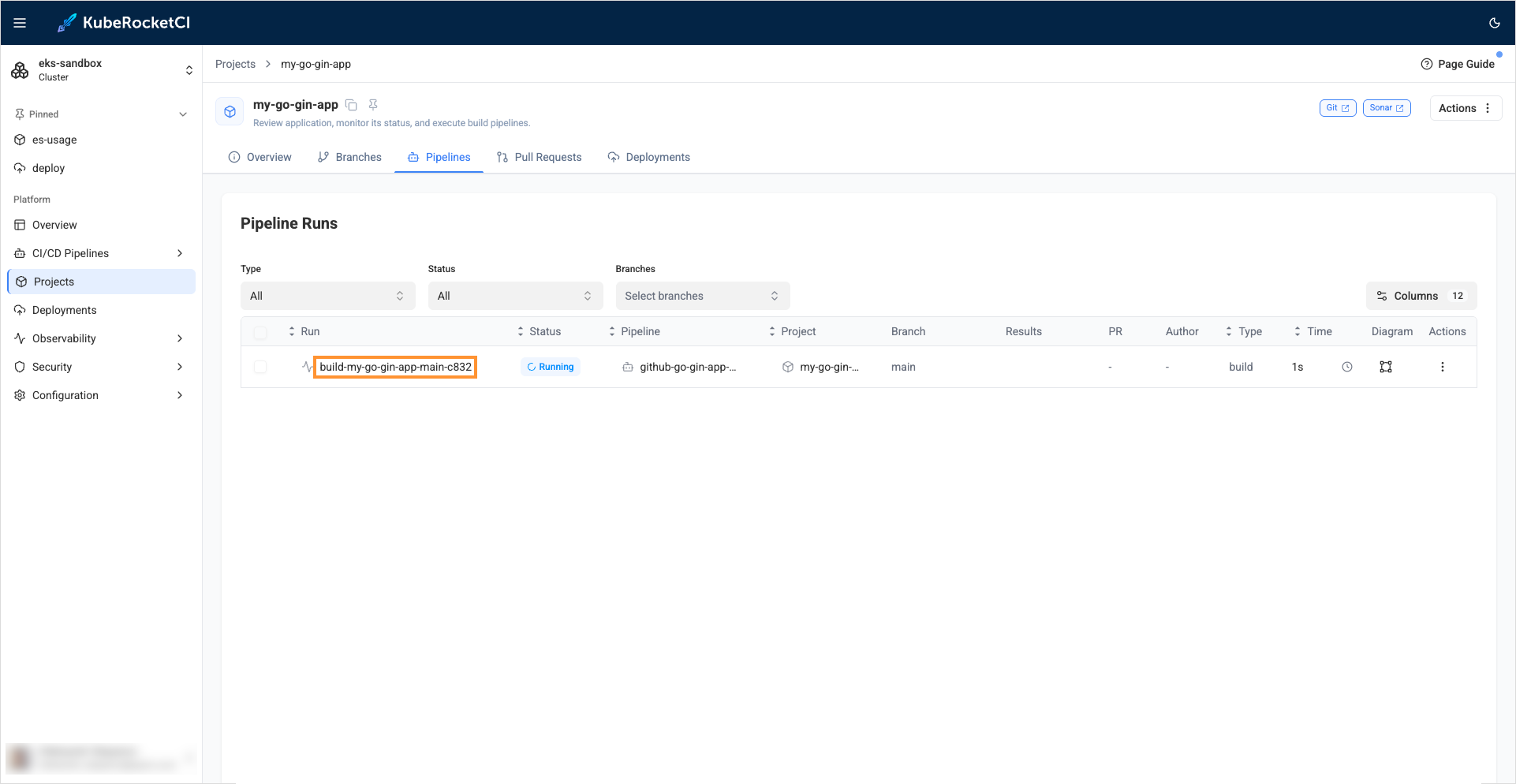

11. Open the PipelineRun and wait until it finishes. Many small starter projects pass on the first run:





    note

    After the first analysis, SonarCloud may adjust Quality Gate behavior for the project. If the sonar task fails with Quality Gate failed even though the scan completed, address the reported issues or review the Quality Gate, then re-run the build pipeline. A second run is not always required.

Build pipelines in KubeRocketCI are specifically designed to generate an executable image of an application. Once the build process is complete, the resulting image can be deployed and run in a target environment.

Now that you have successfully built an application, the next step is to create an environment for deployment. In order to deploy the application, you will need to install and integrate Argo CD. To learn how to install and integrate Argo CD, please refer to the Integrate Argo CD page.
